UVC Underwater Detection Sterilization Lamp UV Intensity Meter

Water treatment is divided into waste-water treatment, urban water supply treatment, drinking water treatment, pure water treatment, aquaculture water treatment;There are two methods of water treatment, the first is to put the UVC Sterilization Lamp in the water sterilization, the second is to put the sterilization lamp in the casing, because the flow rate of water is too fast, sterilization lamp time sometimes less than 1 second, so will require the use of high power sterilization lamp or choose a longer UV lamp to sterilization.

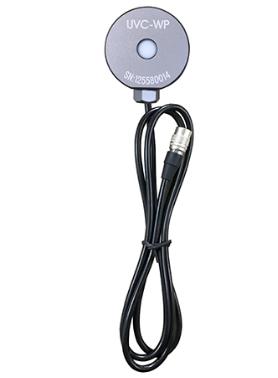

UV Intensity Sensor UVC-WP probe is one of the 9 probes of LS125 ultraviolet irradiance meter. It is a probe specially developed for water treatment high-power sterilization lamp. The response wavelength of the probe is 230nm-280nm, with waterproof function, waterproof depth up to 1 meter, and can detect the intensity and energy of the sterilization lamp.

Parameter of UVC UV Measurement:
1.Spectral Response : 230nm-280nm, λp=254nm
2.Power Measurement Range : 0-200000μW/cm2
3.Power Resolution : 0.1μW/cm2
4.Energy Measurement Range :  0 - 9999999μJ/cm2
5.Write Time : 0 - 99999S
6.Measurement Accuracy :  ±10 %
7.Sampling Rate : 6 times / s
8.Units :  μW/cm2 (default)，mW/cm2，W/m2
9.Test the Diameter of Light Hole : ￠10mm
10.Probe Size : diameter 50mm * thickness 20mm
11.The Depth of Waterproof : 1m



Advantages of UV Intensity Meter Caliibration :
1. Large range UV Intensity Meter Caliibration, the maximum power can be measured to 200000 W/cm2.
2. The instrument can measure the energy value and power value at the same time.
3. It has rich statistical functions, such as real time value, maximum value, minimum value, average value, measurement duration and energy value.
4. Can switch 3 measurement units, respectively W/cm2, mW/cm2, W/m2 data conversion between different units without manual calculation.
5. With waterproof function, waterproof depth up to 1 m.
