Monday, October 30, 2023

Comparison Of UV Tape And Blue Film

 Both the UV tape and blue film are viscous, and their viscosity is expressed by the viscous peel degree, usually N/20 mm or N/25 mm. For example, the meaning of 1 N/20 mm is that the width of the test strip is 20 mm, and the force to peel it off from the test version with a 180° peel Angle is 1 N. UV film is a special formulation of coating on the surface of PET film substrate, to achieve the effect of blocking ultraviolet light and short-wavelength visible light. Figure 1 shows a general UV tape structure diagram. Generally, the UV tape is composed of 3 layers, the base material is polyethylene chloride, the viscous layer is in the middle, and the adjacent to the viscous layer is the Release film, some UV tape models do not have the coating.

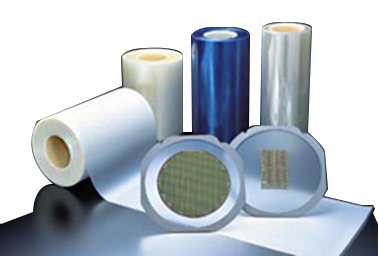

UV Tape Blue Film


UV tape is usually called ultraviolet radiation tape, the price is relatively high, and the validity period is short when not used. It is divided into high viscosity, medium viscosity and low viscosity. For the highly viscous UV tape, it is very viscous without ultraviolet irradiation, and the viscous peel degree is about 5 000 mN/20 mm to 12 000 mN/20 mm, but after the ultraviolet light irradiation time is extended and the irradiation intensity is increased, the peel viscosity will be reduced to less than 1 000 mN/20 mm. For the low-viscosity UV tape, without UV irradiation, its peel viscosity is about 1 000 mN/20 mm, and after ultraviolet irradiation, its peel viscosity will be reduced to about 100 mN/20 mm. The medium viscosity UV tape is between the high viscosity and the low viscosity.

After the low-viscosity UV tape passes a certain time and a certain intensity of ultraviolet irradiation, although its viscosity stripping degree will be reduced to about 100 mN/20 mm, there will be no residual glue phenomenon on the surface of the wafer, and the grains are easy to be removed. At the same time, the UV film has appropriate expansion, and in the process of thinning the scribing, water will not penetrate between the grain and the tape.

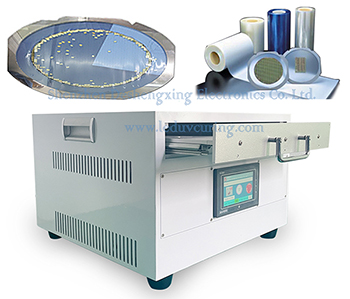

UV Film Curing Equipment


Blue film is usually called electronic grade film, the price is lower. It is a kind of blue viscosity unchanged film, relative to the high viscosity UV film that has not been irradiated by ultraviolet light, its viscosity stripping degree is generally low, not sensitive to ultraviolet light, the range is (1 000 ~ 3 000)mN/20 mm, and will produce residual glue affected by temperature. The first name is because the film is blue, and now with the development of technology, other colors have also appeared, and the use has been broadened. Compared with blue film, UV tape is more stable than blue film. UV tape whether before or after ultraviolet irradiation, the viscosity of UV tape is relatively stable, but the cost is high. The cost of blue film is relatively cheap, but the viscosity will change with the change of temperature, and it is easy to produce residual glue.

Wednesday, October 25, 2023

6inch Semiautomatic Wafer Expander For UV Tape Blue Film Expansion

 Standard 6inch Semiautomatic Semiconductor Wafer Tape Expander has 6inch/8inch/12inch, customer can customize the device according to the requirements. Common specification is frame ring to hoop ring.


Parameters:

Name

Semiautomatic Wafer Expander

Model

DSXUV-WE-S6

Dimension

L600 x W510 x H1003mm

Size for

6inch wafer and below

Hoop Ring

OD 152 ID 141 mm

Power

500W

Working plate rising height

10-70mm

Voltage

AC 220V, 50/60HZ

Table heating temperature

Indoor Temperature ~ 80

(thermostatic design)

Air Pressure

0.3-0.8Mpa

Film Type

Blue film, UV tape, PVC

Thickness of Film

0.05-0.2mm

Cutting

Serrated Blade Knife (0-15mm)

Control Mode

Semiautomatic / Manual

Weight

About 85KG

Warranty

New products, non-human damage, the whole machine warranty one year


6inch hoop ring work plate


Technological Requirements:

Expanding Size

Standard 6inch Frame Ring

Expanding Film Quality

There is no collapsing film, broken film, and the error of the center of the product after film expansion is within ±2mm

X and Y direction deviation of the film expansion

mm (eliminate bias in wafer placement when laminating)

Frame ring and hoop ring can be fixed

Fitted with dowel pins for placing frame ring

Constant temperature design of working disc

Perimembrane expansion is uniform and moderate

Function

Heating temperature, expansion time and speed are adjustable

Characteristics

Work disk does not squeeze the wafer during lifting/drop


Advantage:

1.Height and speed of the film can be set digitally via the touch screen

2.Working disc has a constant temperature heating function, which contributes to the ductility of the film

3.Distance between grains can be adjusted by adjusting the height of the working disk

4.Lower serrated knife automatic film cutting function

5.5 inch touch screen, display parameters, execution steps, fault alarm

6.Motor lifting and cylinder lifting are used to complete the film expanding process to ensure the consistency of film expanding

7.Using PLC as the control system, you can set the preheating delay of the table rising, the film expansion delay and other functions to better improve the quality of the film expansion


Wednesday, August 2, 2023

Special Material UV Protective Suit UV-Resistant Material Professional For UV Penetration

 Product Details

This professional UV protective suit is needed in industry and hospital whenever there is UV radiation. Factory engaged in UV furnace and a variety of ultraviolet light source equipment operations staff and hospital staff must.


Harm of UV to human body of Breathable Membrane Ultraviolet Protectiove Clothing :

The ultraviolet ray in solar spectrum makes textile fade and embrittlement not only, also can make human body skin basks in ageing, produce melanin and chromatic spot, more serious still can cause cancerous change, endanger human health. The harm of ultraviolet radiation to human body attracts more and more attention from all countries in the word. Countries such as Australia clearly require students’ clothing to have sunscreen function. China has also formulated the standard of anti-ultraviolet textile.


High Quality UV protective clothing UV-Proof Pure Cotton Cloth Wholesalers


Principles of Anti-Static Isolation UV Protective Clothing :

Shenzhen Deshengxing Electronics Co., Ltd. is an ultraviolet fabrics containing numerous customers supply efficient UV absorption material. Its protection principle is the ultraviolet ray that prevents ultraviolet ray fabrics to absorb high energy, make it transform to low energy through the jump of molecular level, become the heat energy of low energy or the electromagnetic wave with shorter wavelength, reduce insolation intensity thereby, eliminate the harm of ultraviolet ray to human body and fabric.


Breathable Membrane UV-Resistant Material Clothing Suppliers

The Clothing is excluding UV Protective Glasses, if you need, please click : UV Protective Goggles


Product Features of Professional Safety UV Protective Suit :

1. CE Certificated,Effective protection of particulate matter

2. Excellence in durability

3. Wear comfortable

4. Protection against static electricity

5. Can be used with other protective equipment

6. Anti dust,Anti-harmful particles,Lowly hazardous liquids

7. Can not be washed

8. Do not tumble dry

9. Do not iron

10. Do not dry clean

11. non-toxic

12. safe to human body

13. no skin irritation

14. no allergic reaction

15. with good moisture absorption


Raw material for Professional Safety UV protective clothing :

UV-resistant fabrics include cotton, linen, silk, wool, terylene and nylon fabrics, which can absorb reflect and scatter ultraviolet rays at 180-400nm (especially UV-A and UV-B).


Professional High Intensity UV Penetration Protection UV-Proof Terylene Manufacturer


Authority to prove of Safety Anti-UV Pure Cotton Clothing :

Tests by authoritative institutions in Australia and other countries have proved that the UPF value of UV protective clothing JC40*40 and 110*90 flat cloth is as high as 50+, and the UPF value is still 50+ after 40 times of washing. Shenzhen Deshengxing Electronics Co., Ltd. can provide various specifications of anti--UV fabrics : anti-UV pure cotton cloth : 40*40, 133*100, 36-100 and 30*30, 68*68, 36-102. UV-proof terylene : 30*30, 76*84, 76-105 and 40*40, 100*80, 47-101. UV-proof pure cotton cloth : 40*40, 110*90, 47-105, etc.

Imported UV Protection Mask Anti-UV Mask Prevent Facial UV Damage

 Product Details


Safety Anti UV Infrared Scratch Splash Helmet Clear Anti-UV Face Protective Mask Welding Helmet Safety Anti Splash Shield Visor Anti-Shock Workplace Protection Tools


Parameters of Transparent Full Face Shield UV Protection Mask :

Brand : DSX

Type : LUV-40

Place of Origin : China


Welding Shield Mask Anti-UV Transparent Lens Anti-shock Helmet Safety Work Heads Welding Face Eye Protect Shield Masks


Overview of LUV-40 Industrial UV Filter Mask Eye Protector :

LUV-40 Industrial UV Filter Mask Eye Protector is a high-brightness UV protection mask carefully developed by LuYang, which can effectively protect against the radiation of short wave UVC, UVB and UVA.


New Transparent Lens Anti-UV Anti-shock Welding Helmet Face Shield Solder Mask Face Eye Protect Shield Anti-shock


Applications of Standard Anti-UV Full Face Shield for Safety Work :

LUV-40 UV Mask, Standard Anti-UV Full Face Shield for Safety Work, with half helmet, can be firmly fixed on the operator’s head, effectively protecting the operator’s entire face from UV radiation. LUV-40 UV Protection Mask is the first choice for fluorescence detection and life science experiment.

The main applications are UV light curing, UV exposure machine, UV light curing Equipment, photo-sensitive marking machine, UV printing machine, UV coating, UV ink and other manufacturers and screen plate, circuit board and other manufacturers using these equipment.


New Anti-UV Anti-shock Welding Helmet Solder Mask Face Eye Protect Shield Anti-shock


Features of LUV-40 Adjustable UV Face Shield Face Protection Helmet :

A.Five headbands adjust the position for comfortable wearing

B.Soft forehead pad provides long time for comfortable wear

C.Excellent impact resistant

D.Excellent heat resistant

E.Convenient adjustment knob

F.Absorbs 80% of radiant heat

G.Absorption of 99% UV

H.High strength impact protection

I.The thickness of the screen is 1mm

Easy to install, the face plate can be easily installed on the headband


Outdoor Work Cooking Protective Helmet Mask UV Protection Material Suitable for Welding Cutting Work Protective Transparent Mask

30 Degree Beam Angle LED Quartz Glass Lens For 3535 Light Beads Encapsulation

 Product Details

Diameter 2.8mm Optical Glass Lens for 3535 LED Light Beads Encapsulation


Parameters of Planoconvex Lens LED Focus Lens :

1.size : D2.8*H2.3   diameterΦ2.8mm , height 2.3mm

2.LED lens at an Angle of 30°

3.Manufacturer : Shenzhen Deshengxing Electronics Co., Ltd.

4.Type : DSXUVLENS30

5.Center thickness tolerance of lens : ±0.05mm

6.Outside diameter tolerance : ±0.05mm

7.Material : quartz glass

8.Light transmittance : ≥98%, high temperature resistance above 300℃

9.Degree of finish : American-Standard 60/40

10.The lens edge has polished rounded corners of R0.1-R0.2 to prevent lens damage during the packaging process.


High transmittance Plano-Convex Lens for LED Package Distributor


Advantages of Plano-Convex Singlet Lenses :

Instead of the past silica and PC packaging, in line with the market trend, the use of quartz of optical glass materials. Made by optical cold processing, the product has long service life and high transmittance.


30 Degree Beam Angle Diameter 2.8mm Optical Glass Lens LED Quartz Lens Suppliers

High Definition UV LED Quartz Glass 53 Degree Lens 48 Degree Lens For 5050 6060 7070 Lights

 Product Details

Hemispheric UV LED Focusing Lens is with flat window LED matching 53°lens and 48°lens. 53°48°UV LED quartz glass lens fits 5050 6060 7070 6868 flat window lights with lens.


Applications of Hemispherical UV LED Condenser Lens :

LED can be packaged with quartz glass lens to improve LED illumination, and no loss of UV penetration, quartz glass transmittance up to 99.9%. compared with the traditional silica lens, quartz glass is not easy to yellow and fall off, so the LED performance is more stable, longer service life.


LED Quartz Glass


Specifications for 48° 53° Quartz Glass UV LED Focus Lens :

Wavelength

240-3000nm

Cross the center of the lens and the center line of the outer circle : + - 0.015

Material

JDS-2 quartz

Aperture <5 local aperture 0.5

Focal length error

+ - 2%@365nm

Surface

Grade IV

Outside diameter tolerance

+ - 0.05

Grade of material

Second level

Thickness tolerance

+ - 0.05

Amount of light passing through a lens : >90%

Coating

None

Radius of curvature

Focal distance

Degree

Center Thickness of the lens

Angle of visibility

R3

6.54

48°

3 + - 0.05

48°

R3.5

7.63

52°

3.5 + - 0.05

53°


LED Quartz Lens


The case of Quartz Glass Material Focused UV LED Hemispherical Lens :

UV LED Hemispherical Lens Suppliers

Hemispherical LED Lens Distributors

Tuesday, August 1, 2023

1.5 Degree Quartz Glass Lens For Parallel UV LED Light Exposure Machine

 Product Details

1.5 Degree Parallel Light LED Quartz Lens special for Exposure Machine, Mask Aligner, exposing machine, Stepper, etc..


Parameters of Hemispherical LED Quartz Glass Lens :

Diameter : 12.3mm  tolerance : +- 0.15mm

Thickness : 3.71mm tolerance : +-2mm

Angle : <1.5°

Cambered Surface : R8.06

The Lens Focal Length : f15.74

Material : quartz glass


Collimated Light LED Lens for Exposure Machine Suppliers


Hemispherical LED Quartz Glass Lens for Mask Aligner Distributors


Directional Light Plano-Convex Singlet Lenses


Use case reference suggestions of Collimated Light LED Lens for Exposure Machine :

Hemispherical LED Quartz Glass Lens for Exposing Machine


1.5 Degree Plano-Convex Singlet Lens for 2 Meters Long Exposure Machine

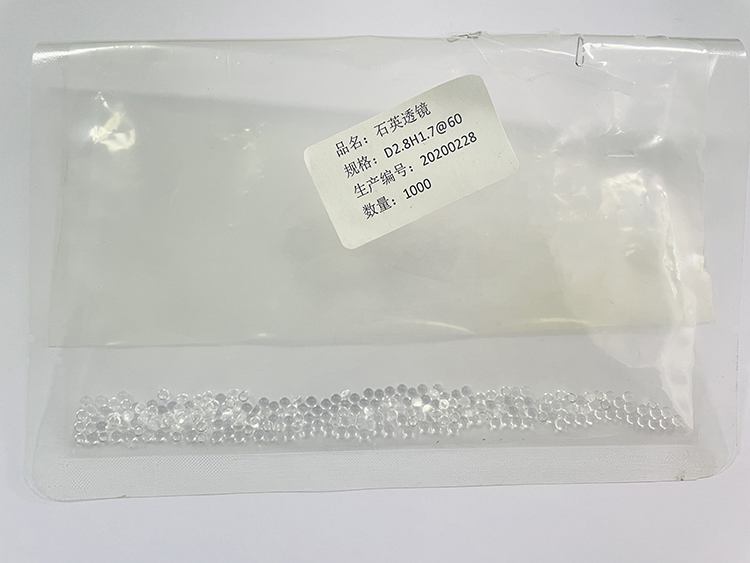

60 Degree Quartz Glass Lens For 3535 UVLED Light Beads

 Product Details

60 degree UV Quartz Glass Lens is suitable for 3535 Ultraviolet LED Lamp Beads, like SVC 365nm UV LED Light, CUN6GF1A UV LED, UVC 275nm, NICHIA NVSU233B UV LED, NICHIA NCSU033B UV LED, or other 3535 UV LEDs. The intensity of ultraviolet radiation can be increased by optical focusing.


Parameters of 3535 size LED Encapsulated Lens :

Material: quartz glass

Lighting degree: 60 degree

Size: D2.8*H1.7

Focal length: 3.5


3535 Lamp Encapsulated Lens UV Quartz Glass Optical Lens
