Portable UV LED Curing Glue Pen Professional LED-UV Point Light Source

 Product Details

High Power UV LED Curing Light Source is according to international standard as a design. The paroduct is high irradiation intensity 7W, natural cooling, easy to carry, etc..


Parameters

Brand: UV-LED CURING

Type: DSX033B7W

Illuminance7000mW/cm2


Power Adapter: AC 0-250V

Plug Interface: Two feet straight, international standard

Size: L: 98MM*W: 67MM*H: 49MM

Weight: 0.18kg (including irradiation head, power cables)


Irradiation Parameter

Cooling Method: Natural Cooling

Line Length: 1.5-2m

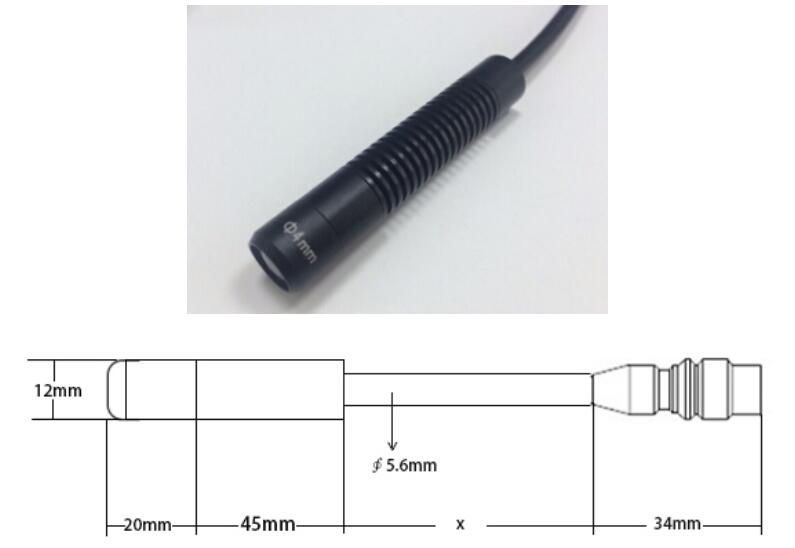

Portable UV LED Curing Glue Pen


Light Spot Size

Size: 12mm external diameter

Thread: M11*0.75

1.Round Spot: φ1.5mm,φ3mm,φ4mm,φ5mm,φ6mm,φ8mm,φ10mm,φ12mm,φ15mm,φ20mm

2.Direct Rectangular Light Spot:: 3*12mm,4*16mm,5*20mm

3.90°a lens of side light (φ3mm, φ4mm,φ6mm,φ8mm, round spot)

Multiple lenses are selected for different spots. When changing, twist the lens of the inscribed part.

Shipment standard with one, can be multiple choice, optional extra.


Natural Cooling Professional LED-UV Point Light Source


Light of the Rectangular Lens

Irradiation Intensity


The size of different spots can affect the irradiation intensity. The smaller the light spot is, the higher the irradiation intensity is.

The size of different spots


UV LED Curing Light Source Small Area UV Glue


Small Area UV Glue


Instructions

A.Power Switch B. International Standard Plug C. Cylindrical Head


UV LED Curing Light Source 7w


Operation:

Only one switch button operation. When using, just turn on the switch, and turn off the switch manually when not in use.


Single Head Irradiation Intensity

Fast Curing Irradiation Intensity 7W
